Settings of Sensors with RS485 Interface

Currently, UbiBot offers five types of sensors that are embedded with RS485 interface, including TH30S-B sensor, Soil Temperature and Moisture Sensor, PT-100 temperature sensor, CO₂ sensor, and Wind speed sensor . Before you get started with them, please take a few minutes to go through following steps below to enable them firstly.

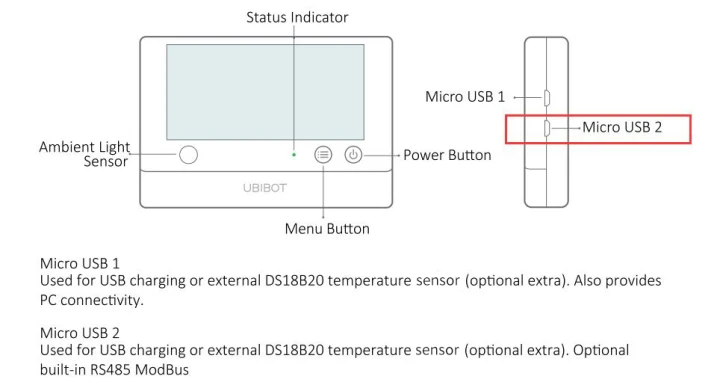

1.Insert the sensor into the RS485 connector on the

*Note: UbiBot WS1 doesn't support this type of sensors.

2.Log into your UbiBot accountvia web-console (console.ubibot.com) or UbiBot App.

(a)Web-console route as: Data Warehouse- Choose target device- Settings- Data Management- Turn on RS485 interface.

Please note, "RS485 S" button is for the Soil sensor.

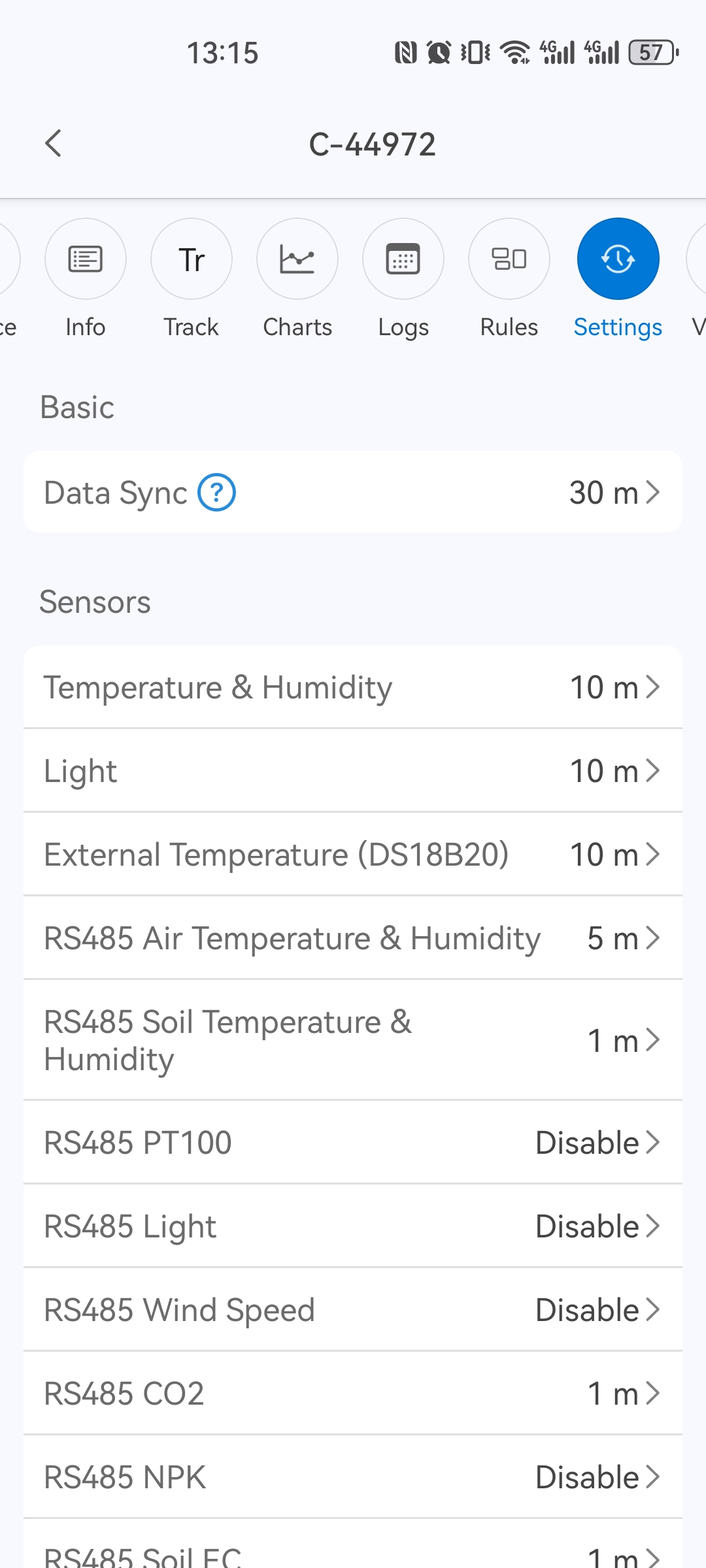

(b)UbiBot App please follow below screenshot:

3.Press the power button once, you can manually sync the data to the platform. After the synchronisation completely, you can view the data on device LCD screendirectly or via mobile app or web-console remotely.

*Please note, the sensors are under one year limited warranty since the purchase date. For details, please click here.
