Currently, UbiBot offers five types of probes that are embedded with RS485 interface, including TH30S-B probe, Soil Temperature and Moisture Sensor, PT-100 temperature probe, CO2 probe, and Wind speed probe . Before you get started with them, please take a few minutes to go through following steps below to enable them firstly.

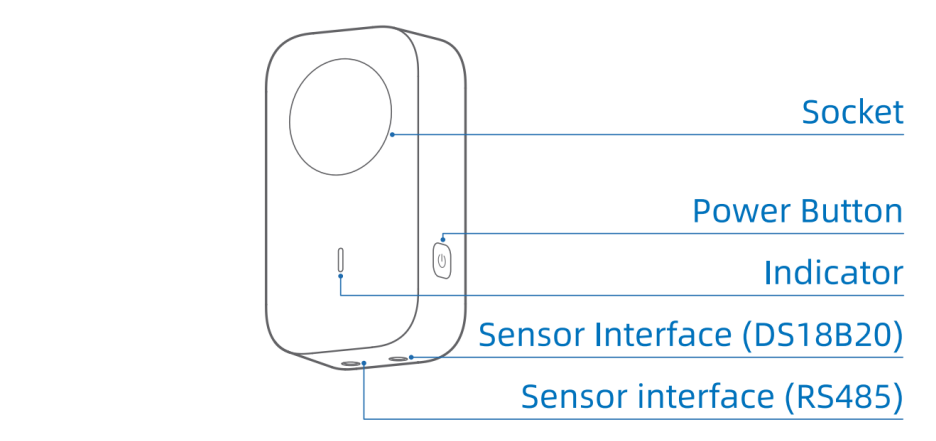

1.Insert the probe into the RS485 connector on the
*Note: UbiBot WS1 doesn’t support this type of probes.
2.Log into your UbiBot accountvia web-console (console.ubibot.com) or UbiBot App.
(a)Web-console route as: Data Warehouse- Choose target device- Settings- Data Management- Turn on RS485 interface.
Please note, “RS485 S” button is for the Soil probe.
(b)UbiBot App please follow below screenshot:
3.Press the power button once, you can manually sync the data to the platform. After the synchronisation completely, you can view the data on device LCD screendirectly or via mobile app or web-console remotely.
*Please note, the probes are under one year limited warranty since the purchase date. For details, please click here.
